Description
Primal RC Raminator V4Â Monster Truck Electronic Brush-less Motor Conversion now with 300 Amp ESC! Kit by Chris Fine of FINE DESIGNS
MPN: FINEDESIGN-04
Â
Note: Because this product contains a LiPo battery (for the radiator cooling fan), we must ship the small LiPo battery that powers the cooling fan separately from the rest of the kit for any air shipping (Next Day Air, Second Day Air, International sales etc.)
Features Include:

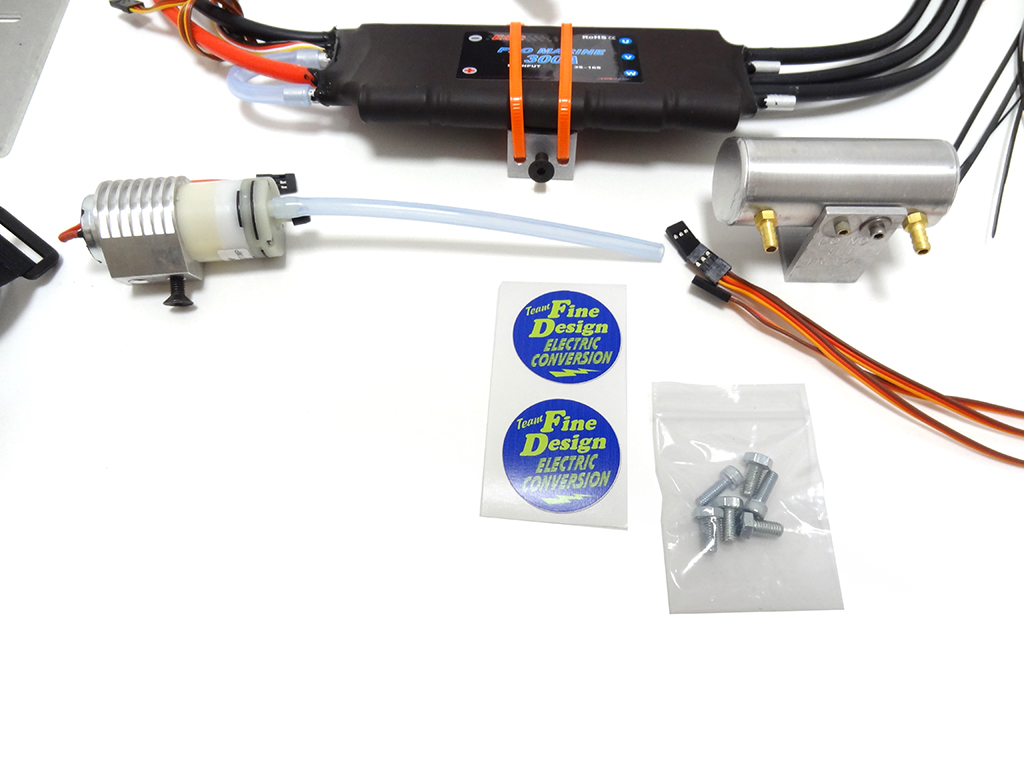

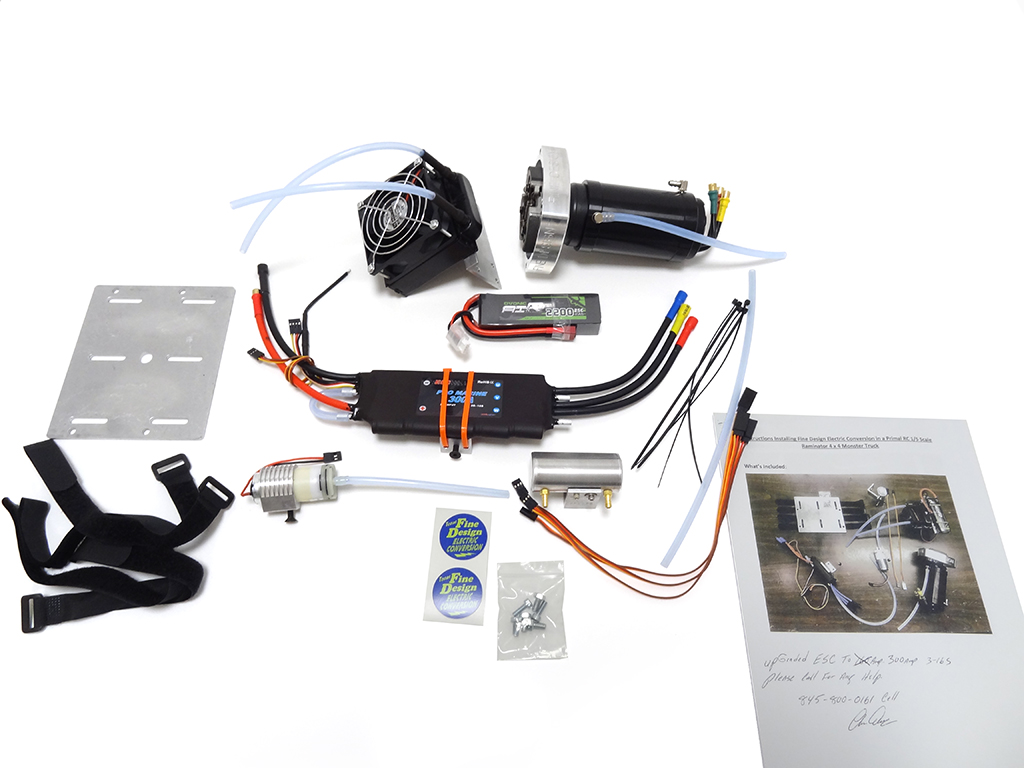

- Special FINE DESIGNS Billet Motor Mount

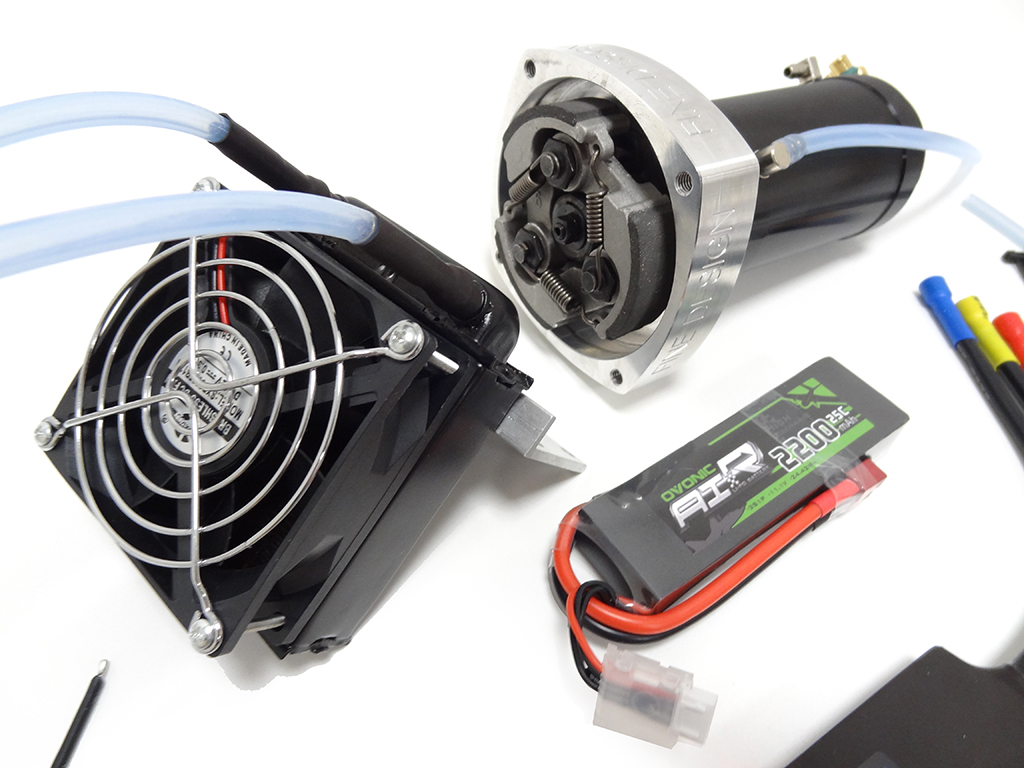

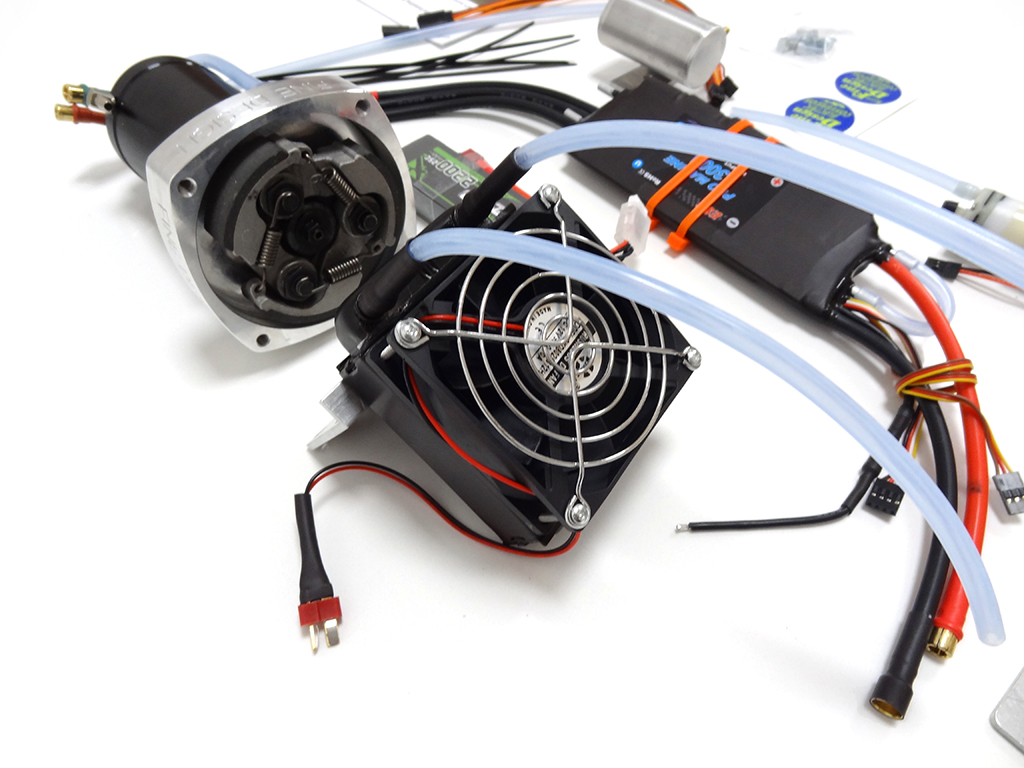

- Custom Tuned Brush-less Black Jacket 500KV (V2) Water Cooled Motor
- Special Clutch Mount and Clutch Installed
- TFL 300A-HV Water Cooled Electronic Speed Control with new 8mm Battery Connectors to transfer the higher voltage.
- Aluminum Water Storage Tank
- Water Pump with Billet Mount
- Radiator with large 3.25-inch cooling fan powered by an included 2200mah 11.1v LIPO Battery
- Aluminum Battery Mounting Plate with Hook and loop Hold Down Straps
- Color Picture Instruction Sheet
- All Wiring, and hardware needed to install is included (some bolts are re-used from the truck)
   Requires:
    Batteries/connectors/series connectors and charger of your choice
    Stock transmission gear ratio (25/25) is recommended.
       Motor Battery Information:
- Â This new 300 amp ESC will now let you run 10S to 12S safely and up to 16S if you dare!!(Not recommended, parts will break!)
- Â LIPO Batteries 5000MAH+ and 60C or higher are recommended.
-  We recommend 10S or 12S. Speed will be about 30mph on 8S, 37.5mph on 10S and 45mph on 12S with tons of torque at any rpm
 Â
Check out the installation video here  https://www.youtube.com/watch?v=9HpnTbYiZm0
