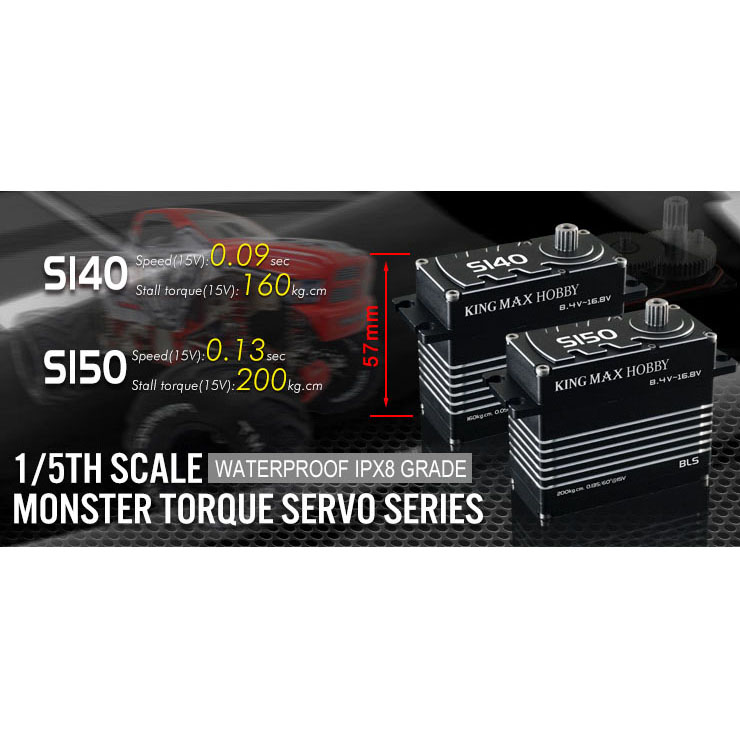

King Max S150–288g 200kg Digital Steel-Gear High Torque Servo

$249.99

In stock

Description

FEATURE:

— High performance, digital multi-voltage high torque servo

— High-precision steel gears

— Full CNC aluminum hulls and structure

— High quality brushless motor

— Dual ball bearings

— Super long working life

— Waterproof IPX8 grade

SPECIFICATIONS:

Operating Speed(8.4V):0.22sec/60degrees

Operating Speed(12V):0.16sec/60degrees

Operating Speed(15V):0.13sec/60degrees

Operating Speed(16.8V):0.11sec/60degrees

Stall torque(15V):200kg.cm(2778.00oz/in)

Maximum working torque(15V):140kg.cm(1944.60oz/in)

Rated working torque(8.4V):67.0kg.cm(930.63oz/in)

Rated working torque(12V):79.0kg.cm(1097.31oz/in)

Rated working torque(15V):85.0kg.cm(1180.65oz/in)

Rated working torque(16.8V):91.0kg.cm(1263.99oz/in)

Dimensions(L*W*H):64*30*57mm/2.49X1.17X2.22in

Weight:288g(10.16oz)

Connector Wire Length:JR265mm(10.33in)

Additional information

Weight 1 lbs
Dimensions 5 × 4 × 4 in

Brand

KingMAX
