Sale!

*SUPER SALE* 1/5 Scale 30 Degree North BWS-5B 4WD ROLLER Buggy DNB (clear body)

$549.99

1/5 Scale 30 Degree North BWS-5B 4WD ROLLER Buggy DNB (clear body)

In stock

SKU: TDN69001-5k Categories: , ,

Description



1/5 Scale 30 Degree North BWS-5B 4WD Roller Buggy (clear body)

This is an awesome 4WD 1/5 scale Buggy for a fantastic price!


This is a ROLLER. Needed to Complete:

  • 2 Stroke Engine
  • Servos x2 (65mm Type)
  • Radio Gear/Handset & Receiver
  • Receiver Battery (Approx 125mm Long)
  • 2 Stroke Oil
  • Gas/Petrol
  • 8-AA Controller Batteries



This is a Brand New 4WD Buggy from 30 Degree North, made by the same great manufacturer that builds the well known DTT line of 1/5th scale trucks which are a well proven truck, Strong & Durable in nearly all conditions.

They are a Totally New Designed & Laid out 5th scale Buggy, Their Engines are more Rear biased for better balance,

The Exhaust Side Fender is ‘Vented’ to allow Heat to escape, and creates a Negative Draw inside the Bodies to help remove the Heat inside.

Their ‘Throttle & Brake’ servo is moved to the Rear of the chassis, giving a Direct line to the Brake, meaning you’ve got a really strong braking force, The Brakes themselves incorporate sintered brake pads on their surface, to grip the Discs like a ‘Real’ vehicle

They’ve got a Completely New Design in ‘Air-Filter’ tech Which has a ‘Duel’ Foam filter at the front, in direct airflow from the front of the Bodies, They then have a fully enclosed ‘Air-Box’ which bolts directly to the carbs manifolds, Their Bodies have been designed for Maximum Air-Flow, both ‘In & Out’ of the Buggy To get the Cool air In, and the Hot air Out as fast as Possible

These Buggies also feature a Brand New designed 4WD drive train in their center, Featuring ‘Ball-Drive’ Tech on the Center drive line, with a Billet Alloy Center driveshaft mount



  • 30 Degree ‘Silenced’ Tuned Pipes
  • 30 Degree North ‘Signature’ Mini-Pin Tires
  • ‘Push-Pull’ Steering arms,
  • Roll-over engine protection supports,
  • Well known Strong 30 Degree North construction throughout.



Shocks

The 30 DNB features aluminum shocks with over-sized 7mm shock shafts, Designed to stand up to massive punishment. Their Adjustable threads and a wide variety of available shock oils mean you can tune them to suit any Track or terrain.

30 Degree North ‘Silenced’ Tuned Pipe

Their lightweight Tuned ‘Silenced’ Pipe has been designed specifically for the 30 DNB Designed to get the most power from the engine, while keeping the engine within Track Noise regulations, It is mounted to the chassis as well as the Engine, And Also has a built in mount as part of the silencer, Which uses the bolt holes on the Rear Diff housing as mounting points, It then has a further brace over the Silencer, to keep it fully secure The silencer is a Separate unit, so it could be possible to run the pipe without it in place, All this mounting reduces Engine to Chassis stress, making the exhaust great for race days when you need the edge on your competition.

Drive train

The 4WD set-up in the 30 DNB will handle any Track & Terrain thrown at it. High quality metal gears are used to provide the best performance and durability possible. There is 30 Degree North Gear sets throughout the whole Buggy, Along with a Newly designed center drive-line, which uses a pair of 7mm thick shafts, Along with 4mm ball bearing ‘Ball-Drive’ Driveshafts ends Which run left of Center down the chassis. They pass through a Billet Center Drive Shaft Mount, with ‘Twin’ Bearings to keep everything smooth, The ‘Ball Drive’ Tech will be stronger, and have less wear than the Normal Dog-Bone driveshafts that people have used for years, This means your power will get transferred to the floor as it should The Spur gear is a Fixed spool, so the drive from the Engine is instant, From the Center Spur to the Rear Diff is a Straight Coupler, so Transfer of Power is Straight there, and not slowed down It also means there is No long rear driveshaft to wear out or twist There are Thick 7mm CVD driveshafts all round, sending the power to each corner of the Buggy

‘Sintered’ brake pads

30 Degree North have fitted ‘Real’ Sintered Brake Pads on their Buggy These are designed to get the most stopping power you can from your discs, They are bonded to the pads themselves, So unlike the more common Metal Pads, which go straight onto a Metal Brake Disc, which causes a lot of heat transfer, and disc warping, These use a tried an tested Real world, Sintered Pad, So their stopping power is greater, with less chance of disc warping, or heat transfer.

30 Degree North ‘Signature’ Mini-Pin Tires

30 Degree North have fitted their Superb Proven Mini-Pins all round on the Buggy These offer Awesome grip on Most Surfaces like Grass, Loose gravel, Dirt & Mud They have their own Logo incorporated into the Tread, hence being their ‘Signature’ Mini-Pins, They’ve now been tried an tested in the Real world, with Great success And also on several different styles of vehicles, Including Trucks & Buggies, in both 2wd & 4wd, So they are a Great match to the New Buggy Giving Great Steering, Handling, Cornering Grip & Stopping Power.

Chassis

The buggy is built using a 6061 alloy 5mm chassis with CNC machining for strength & Reduced weight, This means that the buggies chassis is stiff, and strong Integrated into the left Chassis Fender, is a Set of Vents, These are to help remove the Hot air from inside the Body, around the Exhaust area, And the Underside of the Engine, Having these installed creates a Negative pressure inside the body, Which helps Draw out the Hot air, as Cool air flows in through the Body vents,

Front Protection Bumper

To help keep the front of the Buggy and Chassis safe, 30 Degree North have designed a Front protection Bumper that will absorb the majority of the frontal impacts before you damage the Buggy

Flexible Rear Wing

The buggy has a Innovative Flex Wing, with a Sprung Wing Mount, This means that during any tumbles, the wing will flex, and absorb the rolls, And then Spring back into shape, The Wing Mounts themselves, incorporate a Sprung mount, To allow the Wing to move, and not just snap off on impact or rolls, This also makes putting the body on the rear mount easier too,

Push-Pull Steering links

The buggy is fitted with a pair of ‘Push-Pull’ steering links, These allow you to get the best out of your steering servos, Allowing their power to used equally both left and right,

Radio Box & Battery Box’s

They come with a Separate Battery and Receiver box, The Battery box is Approximately 125mm in length, and fits the normal sized Flat Nimh or Lipo Batteries, Both boxes are fitted with sealed lids, The receiver Box has the Sealed Power switch mounted to it’s side

Covered Outer Beadlocks

The Buggies come fitted with Full cover Outer Beadlocks, These are to help greatly reduce the collection of dirt in the wheels, Meaning they’ll stay cleaner, and keep their rolling weight Down, and Performance Up,

30 Degree North Enclosed Wheel Nuts

They have fitted their Tough but Lightweight Alloy Enclosed Wheel Nuts onto the Buggy These keep the Threads on your Hubs safe from Damage during any Knocks During Racing

Specs:

  • 30 Degree North ‘Silenced’ Tuned Pipe
  • New 6061 alloy 5mm chassis with CNC machining for Strength & Reduced weight
  • Large-bore shocks with 7mm shafts & threaded adjusters
  • Large Two-stage Foam air filter, With Sealed Air box system
  • Adjustable bias dual-disc braking system, With Sintered Brake Pads
  • Extra-large 750cc fuel tank
  • Tunable, sealed viscous differentials
  • 30 Degree North ‘Signature’ Mini-Pin Tires
  • 30 Degree North Enclosed Wheel Nuts
  • Multi-piece beadlock off-road wheels
  • Impact-absorbing bumpers
  • Sealed clutch mount with cooling fins
  • 7mm CVD drive shafts used throughout
  • LxWxH: 800x450x315mm
  • Wheelbase: 560mm
  • Width Front: 375mm
  • Width Rear: 370mm
  • Ground Clearance: 51mm

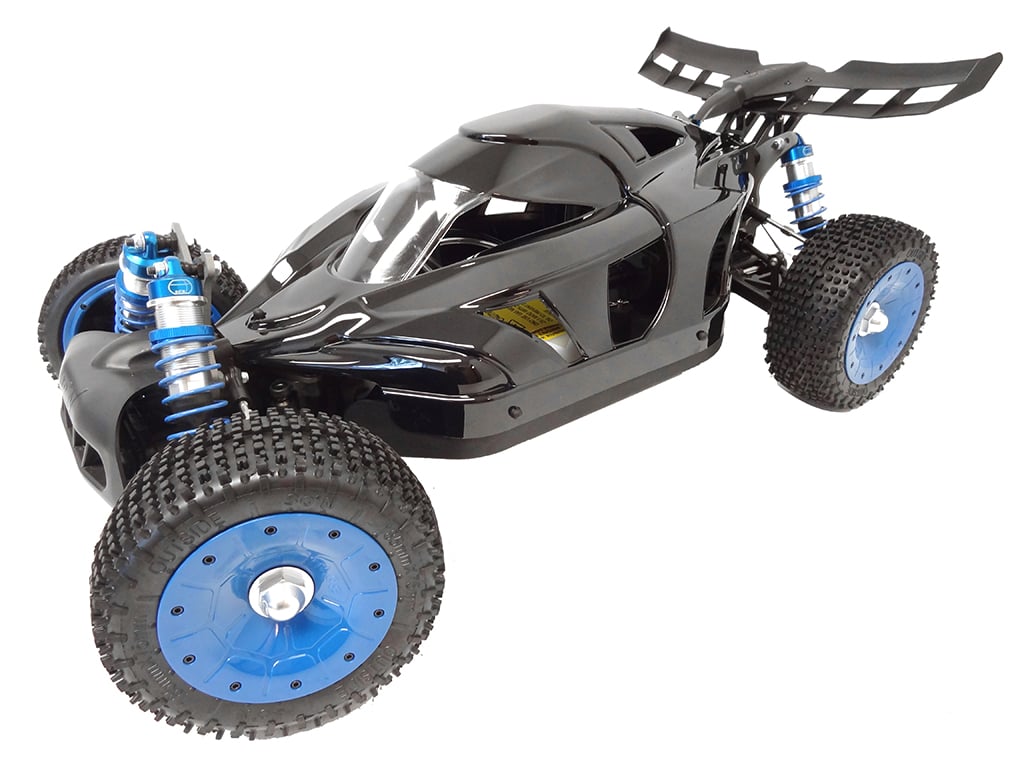

  • NOTE: Black painted body in pictures is just to show how it looks painted. This buggy comes with a clear (unpainted) body
  • Check it out in action here   https://www.youtube.com/watch?v=i-JLw6EPL5c     or     https://www.youtube.com/watch?v=RaOyE6Ippdo&t=1s



Additional information

Weight 38 lbs
Dimensions 31 × 19 × 13 in
Platform

BWS-5B

Color

Unpainted

Drivetrain

4WD

Power Source

Gas

Scale

1:5

Vehicle Setup

Roller

Vehicle Style

Buggy

Brand

30 Degree North
