Primal Monster Truck 100 kg Brushless servo PM13103HV

$129.99

Primal RC Raminator Monster Truck PM13103HV Super TORQUE 100KG High Voltage Digital Brushless Steering or Brake Servo

In stock

SKU: PRPRE011 Categories: , , , , Tag:

Description

Primal RC Raminator Monster Truck PM13103HV Super TORQUE 100KG High Voltage Digital Brushless Steering or Brake Servo


 This is a awesome upgrade from the original 70KG Steering Servo or Brake Servo Upgrade for the Primal Raminator

 Direct fit, just bolt them right into the stock mounts.

 Tech tip: Make sure to adjust your steering endpoints (EPA) on your transmitter so that the servo at full turn is not pushing the steering linkage against the servo mounts, usually about 85% EPA works good


 Can fit many other 1/5 scale RC cars trucks and buggies also!

Description:

CNC Metal Center Case and all Metal Gear 8.4V(MAX) 100kg Brushless Motor Digital Servo



Torque:   78kg.cm at 6V,  103kg.cm at 8.4V

Idle Speed:  .15 second /60 degree at 6V, .13sec /60 degree at 8.4V

Idle current:  680mA at 6V, 830mA at 8.4V

Load current 1.400mA at 6V, 1.700mA at 8.4

Dead band: 6usec

Lifetime: >15000 without load

Moving angle: 60 Degree +/-10 Degree

Drive type: MOS

Motor: Brushless

Potentiometer type: Direct Drive

Signal booster type: Digital

Dimensions: 65.8mm X 30mm X 57.4mm

Weight: 205 g

Connector Wire Length: JR  260 mm

Wire gauge: 26AWG

Bearing: 2BB

Gear teeth:15T

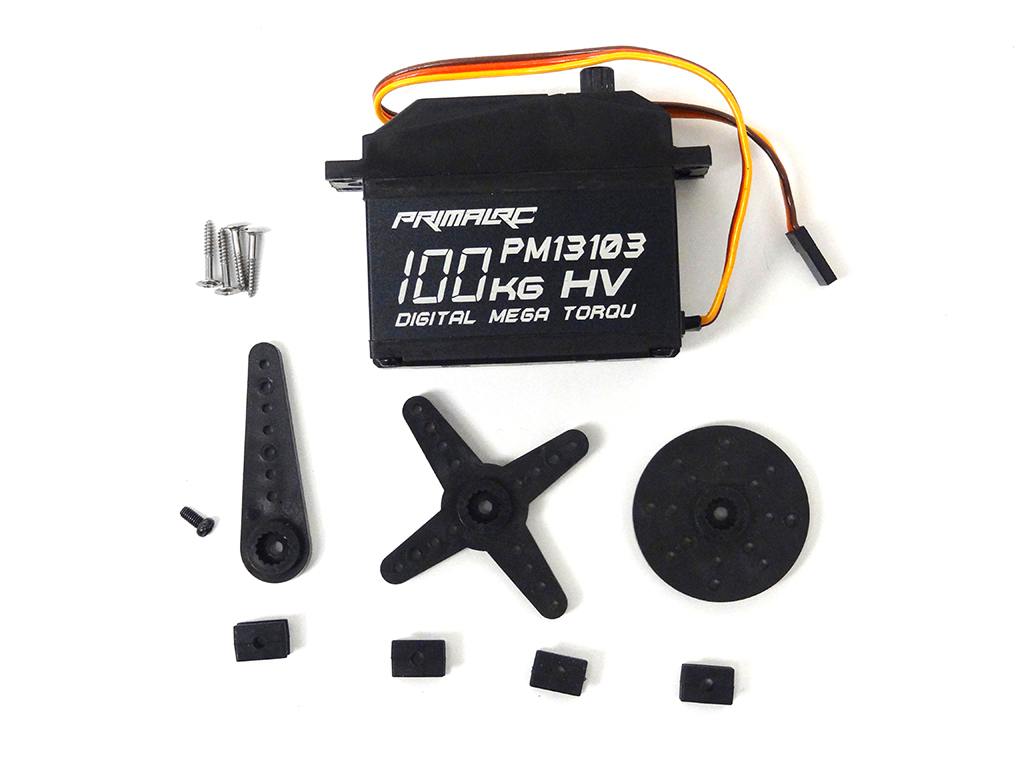

Package Included:
1 x Servo
1 x Bag of Accessories

Additional information

Weight 0.5 lbs
Dimensions 1 × 1 × 1 in
Vehicle Platform

Monster Truck

Brand

Primal RC
