Sale!

1/5 Scale QS Dragster Gas-Engine-Ready Roller

Original price was: $899.98.Current price is: $799.98.

  • 5+ Feet Long
  • Carbon Fiber & Aluminum Construction

In stock

SKU: PRQS1100ARR Categories: , ,

Description

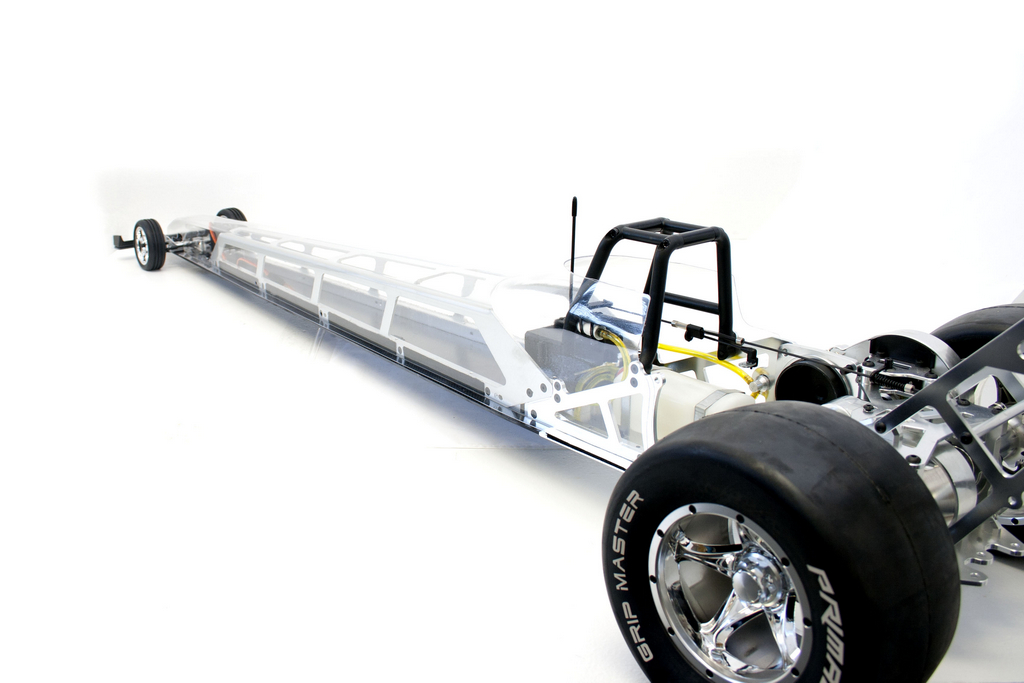

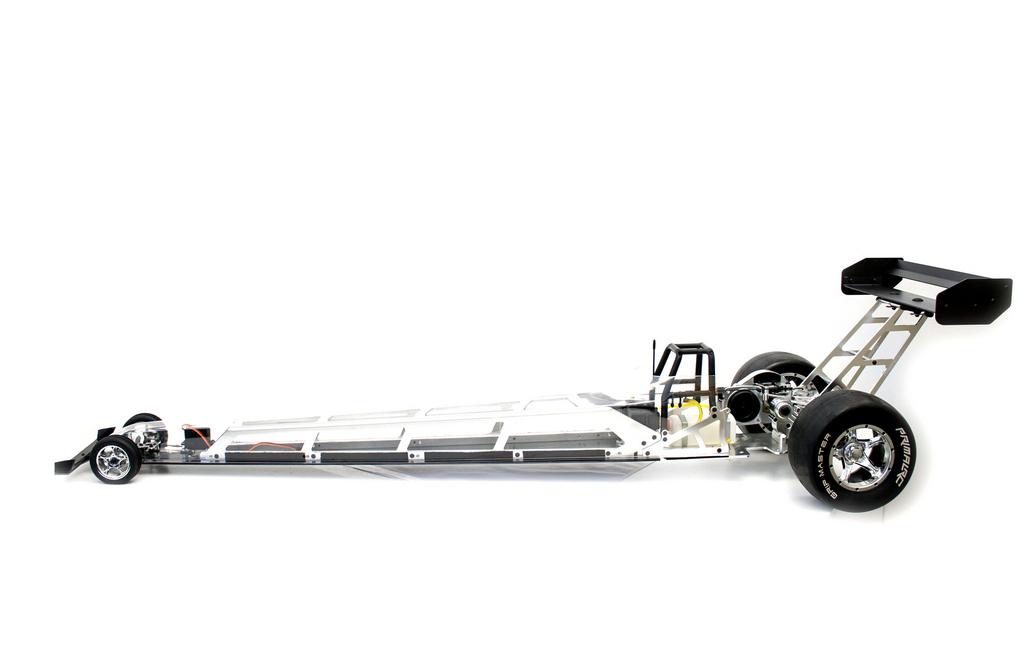

Primal RC is proud to introduce the 1/5 Scale Quicksilver Almost Ready To Run (ARR) gas powered Dragster!
This (ARR) Dragster comes about 90% assembled and is ready for your engine/clutch/pipe/radio/receiver to be installed. Everything else is included with this (ARR) Dragster
We hope that its High quality parts, performance and good looks will give you many hours of exciting tire shredding, asphalt burning RC Dragster Racing Fun!

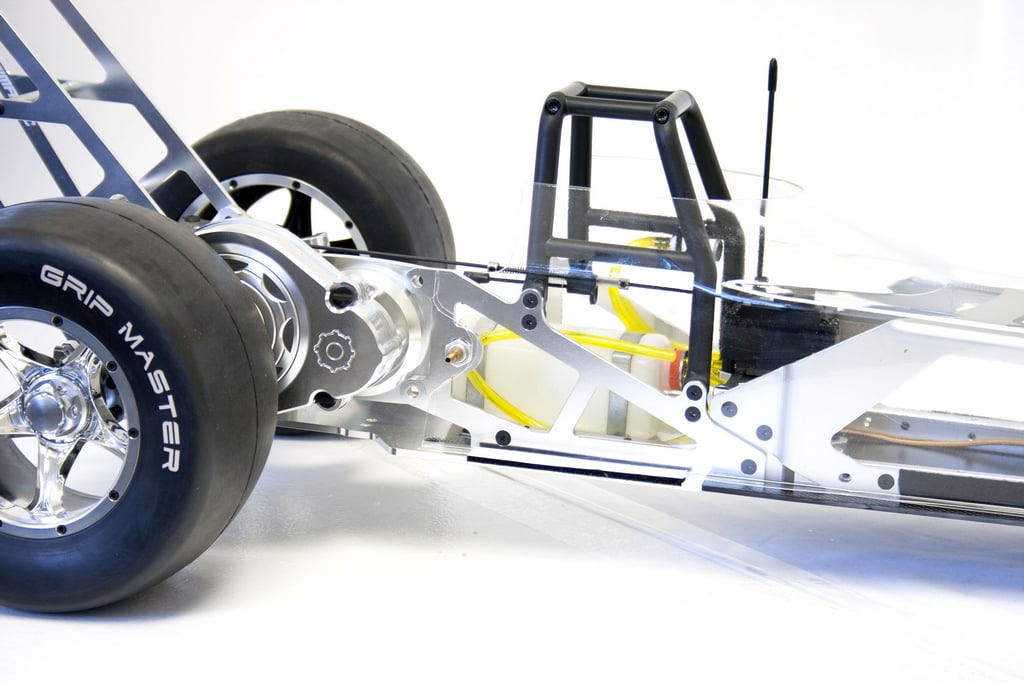

We used lots of CNC aluminum and carbon fiber parts to make this a strong, reliable, fast machine while keeping the weight down.
We Designed it so many 2 stroke engines from 23cc to 34cc can be directly installed or even bigger engines may be installed with some modifications
Engine, transmission design and layout is very similar to the HPI Baja Buggy and Trucks so many aftermarket performance items can be a direct fit or slightly modified to work with this Dragster

Equipment needed to complete

  • Complete 23-34cc engine with clutch and air filter (Zenoah, CY 1/5 scale style engines)
  • 20KG All metal gear throttle/brake servo
  • Muffler or tuned pipe
  • 2 or more channel Radio and receiver

Standard Features Included

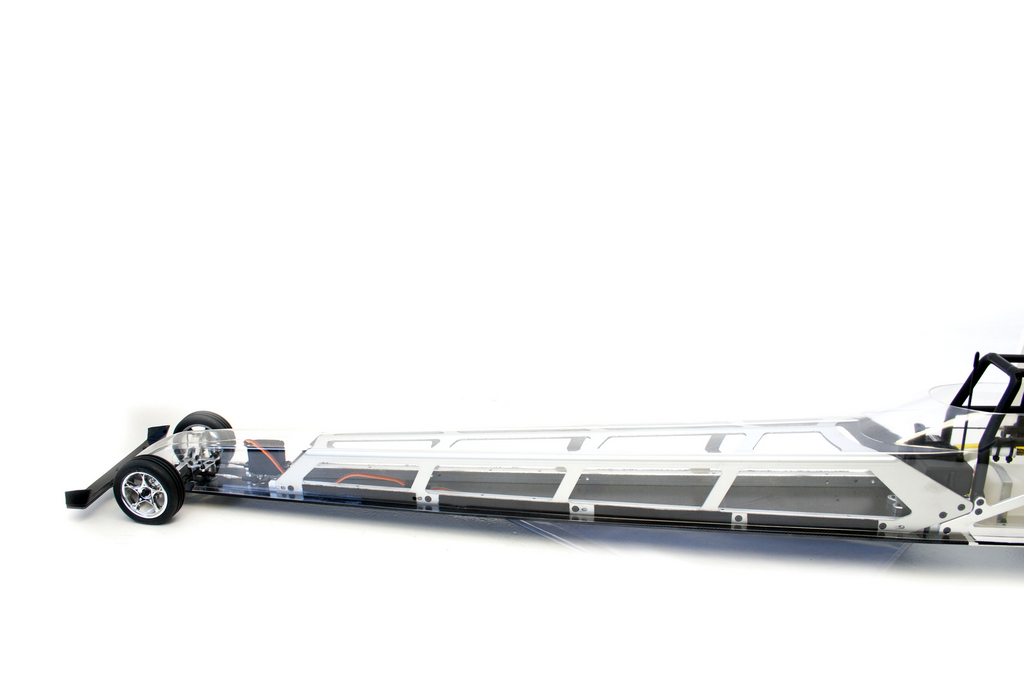

  • Carbon Fiber Lower frame plates, front lower wing mount and rear wing sides
  • 19 tooth steel pinion gear and 55 tooth nylon spur gear for good overall speed and acceleration

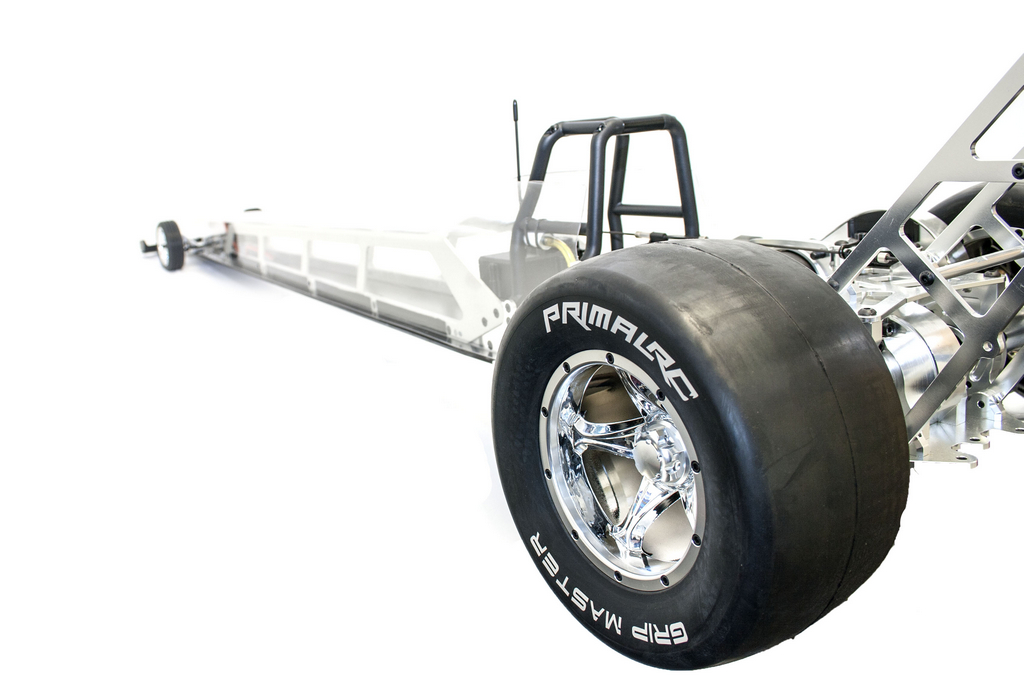

  • Large rear high traction white letter belted drag racing tires with medium compound foams
  • Chrome plated rear heavy duty nylon rims with aluminum bead-locks and steel 24mm hex inserts for added strength

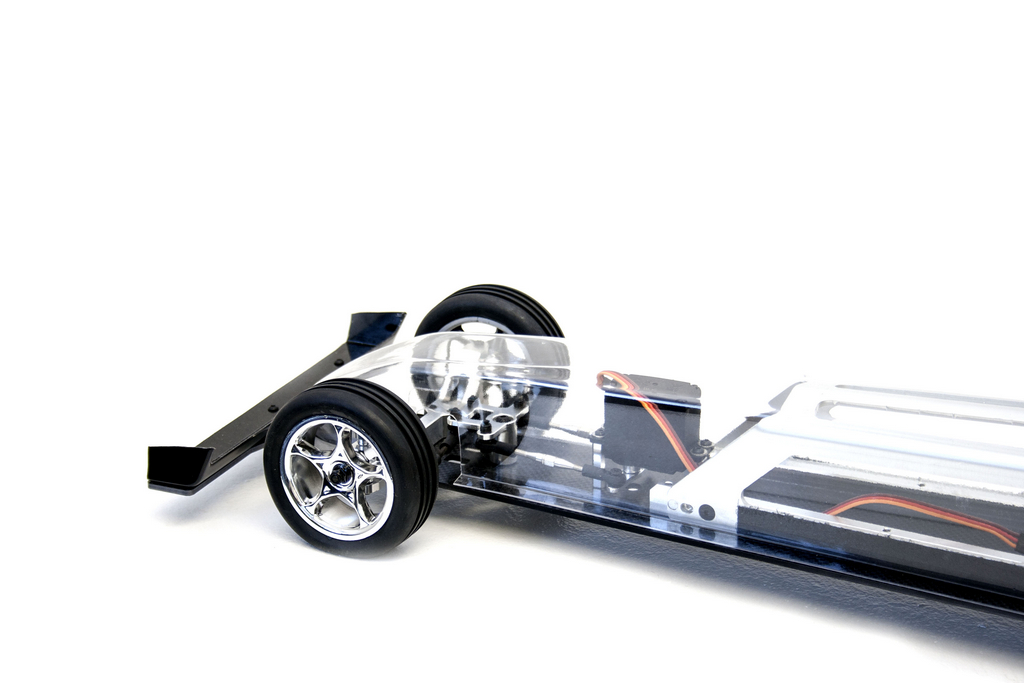

  • Chrome plated front wheels with straight ribbed racing tires

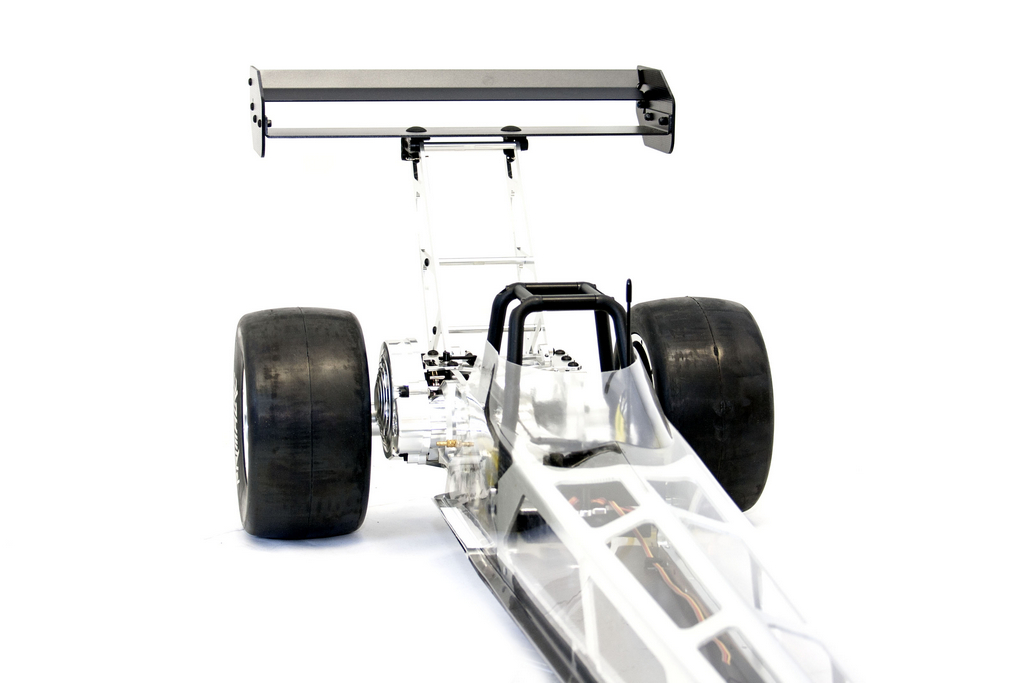

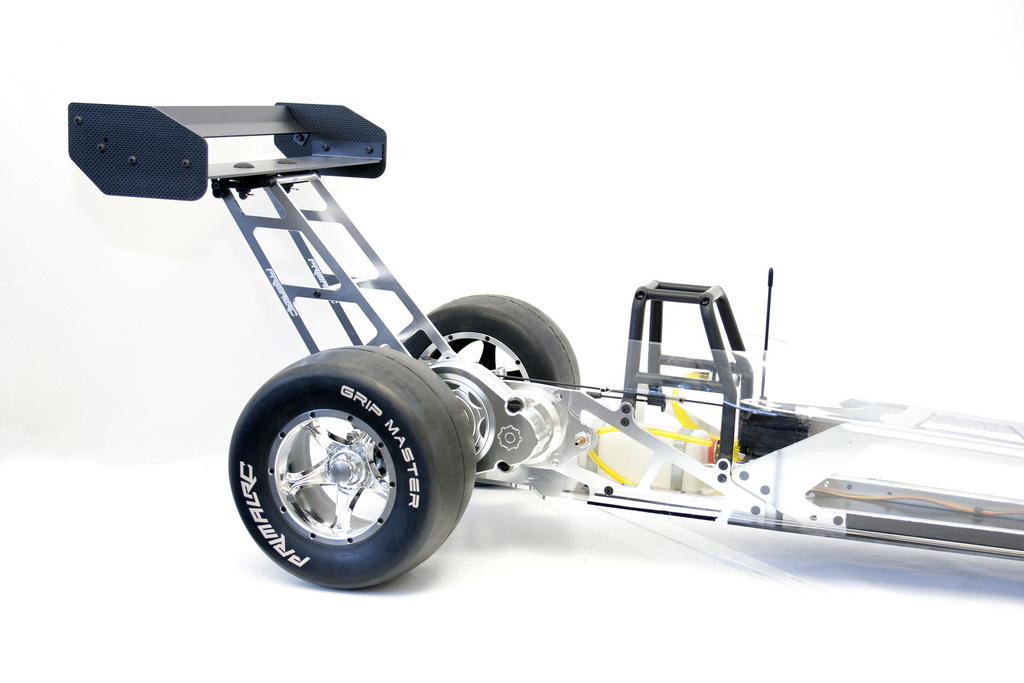

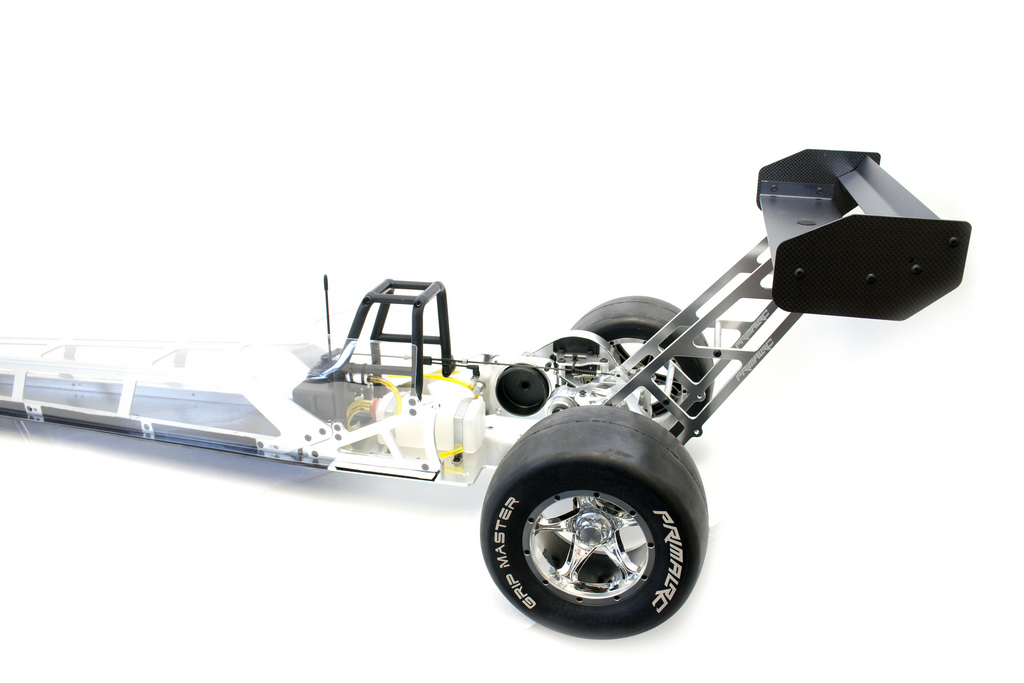

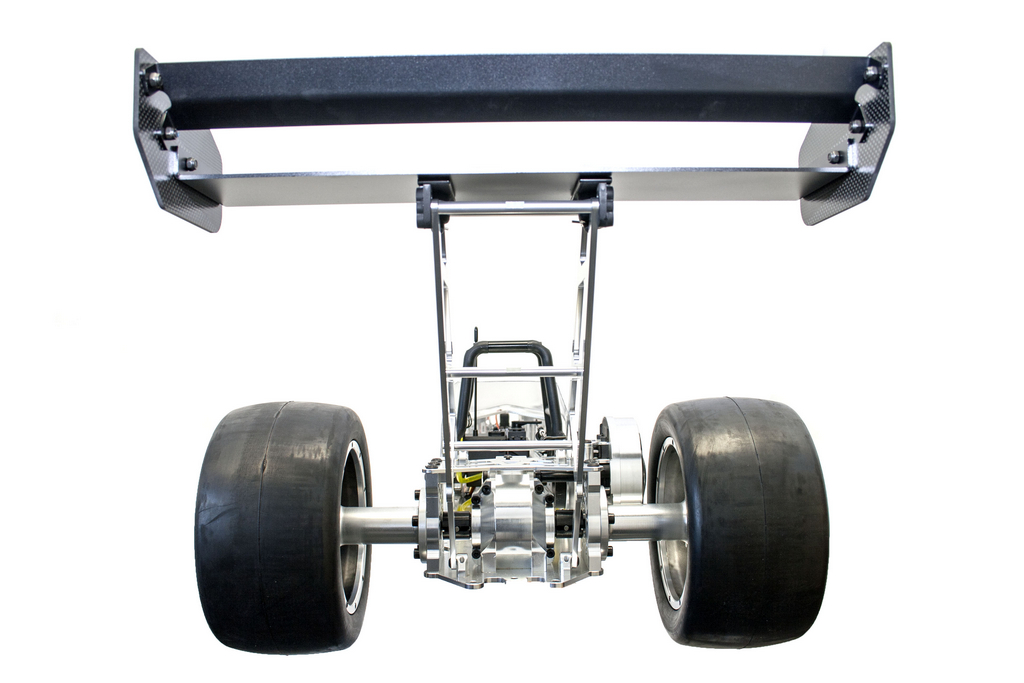

  • Oversize rear adjustable aluminum wing with carbon fiber sides
  • Light weight Front Poly-carbonate wing with carbon fiber mount
  • Strong Plastic roll cage and Poly-carbonate body shell
  • Rear mechanical disc brake system with built in cooling fan
  • Ball bearings used throughout the entire vehicle

Electronic Equipment Included

  • 1800mAh NIMH receiver/servo battery with USA wall charger
  • 20KG steering servo

Gas equipment Included

  • 280cc fuel tank with quick fill system
  • 3 Liter Red fuel storage container with easy fill system for quick mess free performance

Aluminum parts Included

  • Aluminum Main frame brace for strength and rigidity.
  • CNC Aluminum parts throughout the entire vehicle!
  • CNC Aluminum 3 Piece transmission with Steel gears and Locked Axle.
  • CNC Aluminum Axle tubes, supports and hubs
  • CNC Aluminum locker with steel gear installed
  • CNC Aluminum rear upper and lower main Chassis.
  • CNC Aluminum upper brake pad support
  • CNC Aluminum rear wing supports and mounts
  • CNC Aluminum spur gear plate and cover
  • CNC Aluminum enclosed clutch brace
  • CNC Aluminum engine mounts
  • CNC Aluminum chassis connector
  • CNC Aluminum front skid plate and chassis protector
  • CNC Aluminum Ball bearing push-pull steering system
  • CNC Aluminum front axle supports and hubs
  • CNC Aluminum rear inner and outer Tire Bead-locks and enclosed wheel nuts

Specifications
Skill Level Advanced
Speed 50+ MPH with 23cc or larger engines
Length 61 inches
ARR Weight 19 pounds
Height 15.25 inches
Wheelbase 48.25 inches
Front Tires (pre-glued) 3.25 x 2.125 inches
Rear Tires (beadlock) 7.25 x 4 inches
Minimum Ground Clearance 0.5 inches
Rear Track 17.25 inches
Front Track 7 inches
Transmission Single Speed
Differential Type Locked
Brake Twin Disc Vented 2 Shoe Design
Drive System All Steel Gears with 1 Nylon Spur Gear
Steering Push / Pull design with CNC Aluminum, Ball Bearing Support
Battery Tray 90mm x 35 mm x 24 mm h



Additional information

Weight32 lbs
Dimensions59 × 17 × 11 in
Color

Unpainted

Drivetrain

2WD

Vehicle Platform

Dragster

Power Source

Gas

Scale

1:5

Vehicle Setup

Roller

Vehicle Style

Dragster

Brand

Primal RC
